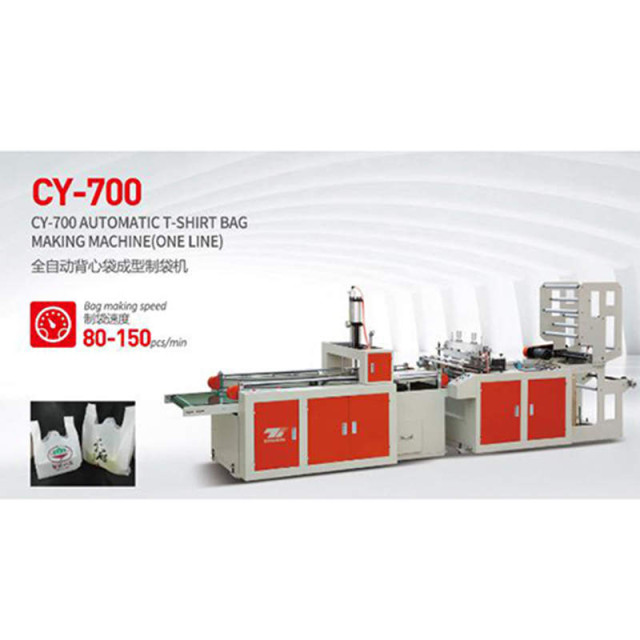

CY-700Fully Automatic T-shirt Bag Making Machine (one lane)

CY-700Fully Automatic T-shirt Bag Making Machine (one lane)

Cutting Off Bag On Roll Bag Making Machine (Cutting Blade Type)
Specifications

Description

Main technical parameters

Cutting Off Bag On Roll Bag Making Machine (Cutting Blade Type)
Specifications
The T-shirt bag making machine is suitable for producing HDPE/LDPE T-shirt bag with and without printing. The machine is equipped with a photocell,

which helps to make sure of the printing area on the film. The machine can cut the bags at same length.
1. Hot Cutting Type
2. Material: HDPE, LDPE, Recycled Material, CaCO3

型号Model CY-700
制袋宽度(mm)max width of bag making 180-650mm

制袋长度(mm)

max length of bag making

200-650mm

薄膜厚度mm

Film thickness

0.015-0.035mm
制袋速度speed 80-150pcs/min

电机功率

motor power

6kw
气压air pressure 5kg/cm2

外形尺寸

machine size

6500*1200*1800mm
机器重量(kg)weight 1400kg
