主要技术参数 Main Technical Parameters
|

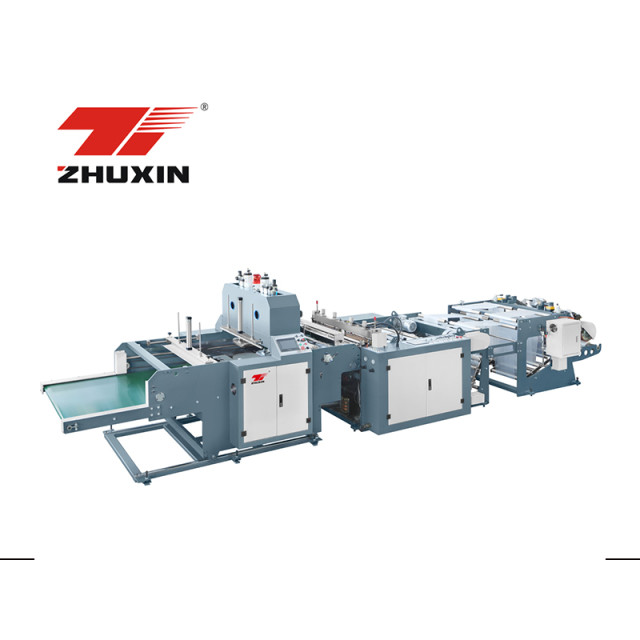

型号 Model |
CY-430X2 |
数量 Quantity |
产地Origin |
|
|
FEATURE 主要性能 |
Width of Bag-Making 制袋宽度 |
200-400mm |
2 | |
|
Length of Bag-Making 制袋长度 |
280-650mm |
2 |
|
|
|
Speed of Bag-Making 制袋速度 |
350pcs/min |
2 |
|
|
|
Single-face Film Thickness 薄膜单面厚度 |
0.010-0.025mm |
|
|
|
|
Air Compressor(cannot lower) 气压 |
6HP |
|
|
|
|
Voltage 电压 |
380V, 50HZ, 3PHASE |
|
|
|
|
Total Power 总功率 |
15kw |
|
|
|
|
Machine Dimension (LxWxH) 机器尺寸 |
7.1x1.8x1.8m (LxWxH) |
|
|
|
|
Machine Weight 机器重量 |
2700 kg |
|
|
|
|
|
||||
|
FEEDING PART 放料部分 |
Unwinding Motor 放料电机（直流电机） |
750w |
2 |
China |
|
Unwinding roller 放料胶辊 |
Ф70x460 |
2 |
|
|
|
Inverter 放料变频器 |
|
2 |
Delta |
|
|
Air Cylinder 气缸 |
|
4 |
China/Taiwan |
|
|
Rectify Deviation 自动纠偏 |
Roller length 500mm 辊宽长度 |
2 |
|
|
|
Cut-off sensor 断料感应器 |
|
2 |
|
|
|
Air shaft 气涨轴 |
|
2 |
|
|
|
transport unit 传送装置 |
Traction Motor 牵引电机 |
1.1kw |
2 |
China |
|
Traction inverter 牵引变频器 |
1.1kw |
2 |
Delta |
|
|
Servo Motor 伺服电机 |
4.4 kw |
2 |
Yaskawa 安川 |
|
|
Photo eye 光电眼 |
|
2 |
Panasonic 松下 |
|
|
Blocking Sensor 堵料感应器 |
|
2 |
|
|
|
Main Motor 主电机 |
3.7kw |
1 |
China |
|
|
Main inverter 主机变频器 |
3.7kw |
1 |
Delta |
|
|
Servo motor inverter 伺服驱动器 |
|
2 |
|
|
|
|
||||
|
HEAT SEALING AND BAG SORTING DEVICE 热切和理袋装置 |
Temperature control 温控系统 |
|
1 |
Omron 欧姆龙 |
|
Screen 触摸屏 |
|
1 |
Weinview 台湾威伦 |
|
|
Low-voltage electricity 低压电器 |
|
1 |
Schneider 施耐德 |
|
|
High frequency solenoid valve 高频电磁阀 |
|
2 |
Taiwan |
|
|
Sortin222g 理袋 |
|
2 |
|
|
|
Heat Sealing Knife 热切刀 |
|
2 |
|
|
|
Brush 刷子 |
|
2 |
|
|
|
Mechanical Arm 机械手 |
|
2 |
|
|
|
PLC Motion Controller PLC运动控制器 |
|
1 |
Taiwan |
|
|
|
||||
|

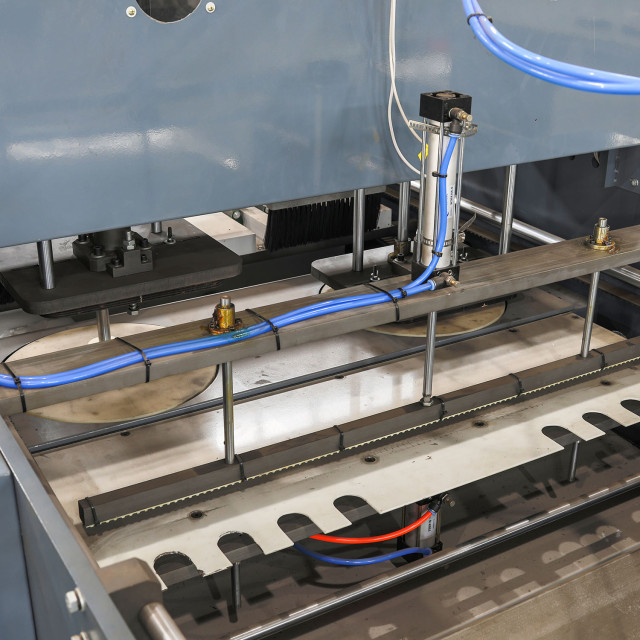

PUNCHING AND FOLDING DEVICE 冲孔和折袋装置 |
Servo Motor 冲机主伺服电机 |
1.5kw |
1 |
China |
|
Conveyor Motor 输送电机 |
1.1kw |
2 |
China |
|
|
Tray Motor 托盘电机 |
25w |
3 |
China |
|
|
Screen 触摸屏 |
|
1 |
Weinview 台湾威伦 |
|
|
Booster cylinder 增压缸 |
5T |
2 |
China |
|
|
Solenoid valve 电磁阀 |
|
1 |
China |
|
|
Conveyor (width) 输送带 |
1100mm |
1 |
|
|
|
|
||||
|
WASTE TRANSFER 废料输送 |
Waste Material Motor 废材输送电机 |
120w |
1 |
China |
|
|
||||
|
FREEACCESSORIES 随机配件 |
Tool Box 工具箱 |
1 set |
|
|
|
Heating Plate 加热片 |
2 pcs |
|
||
|
Tthermocouple 电热偶 |
1 pcs |
|
||
|
Glue 胶水 |
1 pcs |
|
||
|
Open end wrench 开口扳手 |
1 set |
|
||
|
Hexagon wrench 六角扳手 |
1 set |
|
||
|
One screwdriver with " " “ ”字螺丝刀 |
1 pcs |
|
||
|
one screwdriver with "-" “一”字螺丝刀 |
1 pcs |
|
||
|
High-temperature cloth 高温布 |
1 pcs |
|
||
|
Oil Gun 油枪 |
1 pcs |
|||
