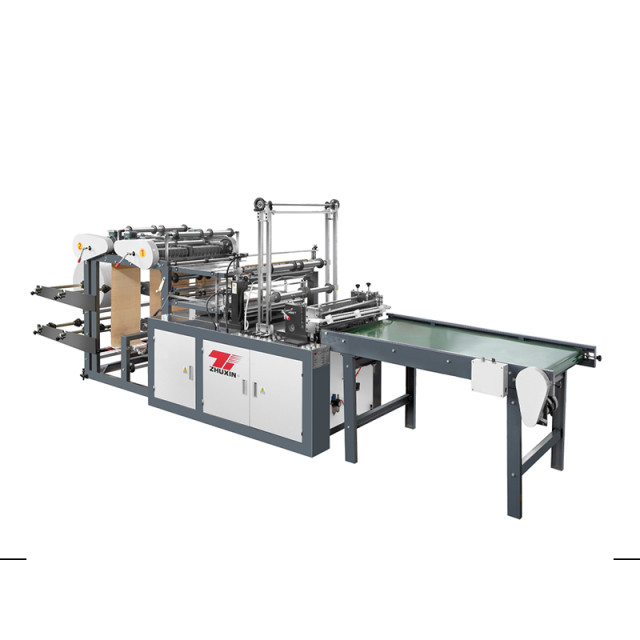

SHXJ-370*4 DOUBLE LAYER FOUR CHANNELS HOT SELING AND COLD CUTTING BAG MACHINE

Online Inquiry Contact Us

Description

Main technical parameters

型号 Model	SHXJ-370*4
制袋宽度(mm)bag width	350mm
制袋长度 (mm) bag length	100-600mm
材料 material	LDPE HDPE
制袋厚度(mm) film thickness	0.01-0.025
制袋速度g(pc/min) speed	彩袋color bag 1501pcs/min 白袋 whith bag 1504pcs/min

加热功率heating power	6kw
总功率total power	8kw
伺服电机servo motor	1.5kw YASKAWA JAPAN
主电机cutter motor	1.5kw taiwan
放料主机unwinding motor	750w*4
机器重量(kg) weight	2000kg
外形尺寸 machine size	450013501800mm
