Printing color: 6 colors
Maximum material width: 1200mm
Performance Description
1. Mechanical structure; Central large roller type, printing materials are supported by a single large roller, and do not leave the pressure roller between one color and one color. As the material belt is tightly wrapped around the central pressure roller, the tension is constant, resulting in accurate color matching.
2. The entire production line achieves tension closed-loop speed control mode from material discharge to finished product winding, maximizing the yield of products.
3. Ink scraping device; Adopting a bidirectional enclosed scraper, it can print exquisite finished products at high speed.
4. It has the characteristics of precise structure, easy operation, convenient maintenance, and strong stability.
5. Drying method; Separate electric heating box, with temperature supply and air blowing for safe use of printed materials, and automatic temperature control.
6. Automatic edge correction for unwinding; When unwinding, an automatic edge correction device is used, which can maintain the tension of the substrate during shutdown, and the substrate will not deviate or shift.
7. Material receiving transmission; High performance motor, correct linkage, and constant tension in the low friction cylinder device of the differential wheel.
Flexographic printing machine, also called aniline press which uses photosensitive resin plate as the printing plate of printing machine. It adopts environmental ink and has advantage of low edition-producing cost, this is an ideal machine for mass lots, large variety production manufacturer It is also suitable for printing HDPE, LDPE, paper, rolling paper etc.
Introduction:
1- The machine use synchronous belt working, low noise. And t can usefully control the machine on and off speed change, sting the color be accurate.
2- Machine rewinder is hydraulic and pneumatic control,and with friction winder. Make the material more tight and more smooth.
3- Machine unwinder is with EPC and hydraulic, no need lit the material by manual.
Four Color Flexographic Printing Machine (2 ,4 ,6 ,8 color) This machine is suitable for printing such packing materials as polyethylene, polypropylene bag, glass paper and roll paper, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.

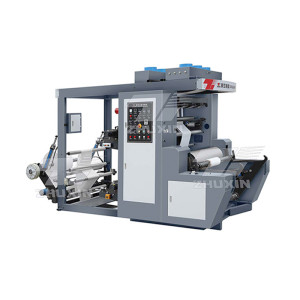

YT Series Two-color Flexo Printing Machine
Model: YT2600-21000
