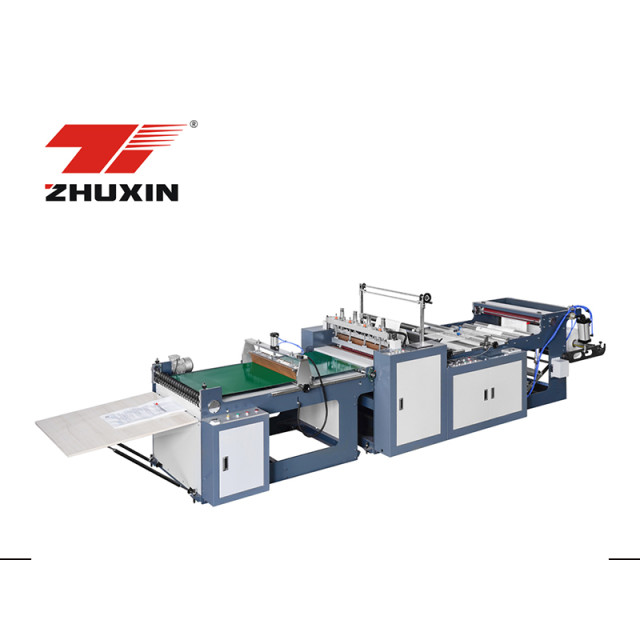

ZX-800 Heavy Bag Tension Free Bag Making Machine

ZX-800 Heavy Bag Tension Free Bag Making Machine

1.This machine is suitable for processing ultra-thick HDPE or LDPE (multi-layer co extrusion) film bags with cylindrical or inserted edges, such as chemical bags and raw material bags.
2.Optional perforation holes for enhanced welding. The discharge adopts a conveyor belt structure.
3.The discharge adopts magnetic powder constant tension control.
4.Electric eye tracking film color code.
5.The machine adopts a computer and servo motor control structure, and the operation panel adopts a human-machine touch screen.
6.The cutting blade adopts a flying blade structure (using a servo motor).
7.Welding and cutting are completely synchronized.
8.Equipped with automatic functions such as feeding, sealing, counting, and reporting.

Description

主要技术参数 Main Technical Parameters

型号

Model

ZX-800



















FEATURE

主要性能

制袋类型

Bag Making Type

Industrial Chemicals Bag化工原料重包装袋

最大制袋宽度

Max Width of Bag-Making



700 mm

最大制袋长度

Max Length of Bag-Making



1350 mm

制袋速度

Bag Making Speed



10-30pcs/min

薄膜单面厚度

Single-face Film Thickness



100-200 micron

龙门打孔

Gantry Punching



80x20 mm

色标跟踪

Photo-cell Color-mark Slotting system



1

气动元件

Pneumatic Components



YUCHENG宇丞

主电机(伺服)

Main Motor (servo motor)



3kw迈信

Maxsine

平均耗电量

Average Power Consume



10 kw

机器尺寸

Machine Dimension (LxWxH)



6300 x 1700 x 1600 mm

机器重量

Machine Weight

1500 kg

*整机机身采用14mm钢板  The entire machine body is made of 14mm steel plate

*整机铝导辊表面氧化处理  Surface oxidation treatment of aluminum guide roller

Discharge Part

放料部分

放料电机(带变频)

Cylinder Temperature control (with inverter)



0.75kw

气动上料

Pneumatic Feeding



1set

磁粉恒张力控制器

Magnetic powder constant tension control

1set





Feeding Part

送料部分

送料电机(伺服)

Feeding Motor (servo motor)



2.6kw迈信

Maxsine

飞刀电机(伺服)

Flying Knife Motor (servo motor)



400W迈信

Maxsine

封刀(铸铜)

Sealing Knife (cast copper)



700mm

切割飞刀

Flying Knife







Transmission section

传送部分

传送带宽度

Belt width



800 x 1650 mm

传送带电机(带变频)

Conveyor belt motor (with inverter)



0.75kw

封口整平装置

Sealing and leveling device





ELECTRICAL

电器

开关

Switch



OMRON 欧姆龙

温控

Temperature Control



FOTEK 阳明

变频器

Inverter

DEFO 德弗
