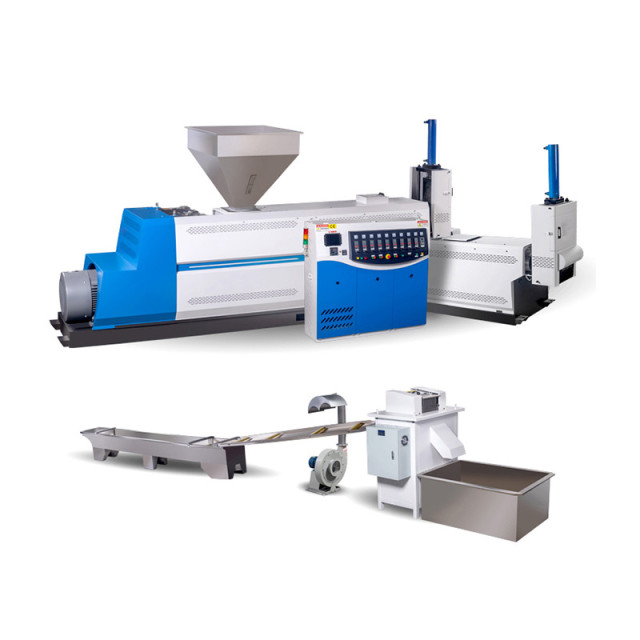

SJ-120 double stage plastic recycling machine

SJ-120 double stage plastic recycling machine

Description

产量yield

150-200kg/h

适用电压

Applicable voltage

380v/50hz/3ph(可根据客户要求定制can be customized according to customer requirements)





螺杆screw

主机

First stage

直径120mm,长度2400mm,材质38CR,排气式螺杆;

Diameter:120mm, length:2400mm, material: 38CR with vent, exhaust screw;

副机

Second stage

直径100mm,长度1200mm,材质38CR,排气式螺杆;

Diameter:100mm, length:1200mm, material: 38CR with vent, exhaust screw;

齿轮箱

Gear box

采用国标ZLYJ:主机:200型;副机:173型

ZLYJ:First stage:200;;Second stage:173

电机Motor

主机First stage:37KW;;副机Second stage:15KW

变频器

Inverter

主机

First stage

采用国际知名品牌:丹佛斯·海利普22kw;

Adopt international famous brand:  HOLIP22kw;

副机

Second stage

采用国际知名品牌:丹佛斯·海利普15kw;

Adopt international famous brand:  HOLIP15kw;

模头

screen changer

主机

First stage

液压上下板尺寸:220mm*220mm;工作压力:≤35Mpa

Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa

副机

Second stage

液压上下板尺寸:220mm*220mm;工作压力:≤35Mpa

Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa

电箱

Control box

温控显示:10区;电器采用国内外知名品牌施耐德与正泰产品

Temperature control display:10Zone; Schneider and China ZHENGTAI  products are used for electrical appliances

电热圈

Heating

材质:陶瓷;加热电压:220V/50Hz;加热功率:2kw-3kw;

Material: Ceramic;Heating voltage: 220 V / 50 Hz;Heating power: 2kw-3kw;

普通料斗Hopper

开放式平行料斗Open parallel hopper

(不包含强制料斗)

冷却水槽

Cooling system

不锈钢材质2500mm*400mm*350mm

Size:2500*400*350mm    Material:Stainless

吹风机

Fan

1.5kw中压电机;加不锈钢流水板

1.5KW medium voltage motor; stainless steel water plate

切粒机

Cutter system

采用合金14把滚刀;切粒尺寸:3-4mm;电机:2.2kw;

Using 14 alloy hobs; grain size: 3-4mm; motor: 2.2kW;

油箱oil box

电机:1.5kw,电磁阀启动;请加液压油:46号或68号;蓄油量:40L;

Motor: 1.5kw, solenoid valve starts;hydraulic oil: 46 or 68;Oil storage capacity: 40L;

随机配件

Random accessories

工具箱(按钮开关、加热棒、电热偶、剪刀、铲刀、钳子等随机配送)

Tool box (button switch, heating rod, electric couple, scissors, shovel, pliers, etc. are randomly distributed)
