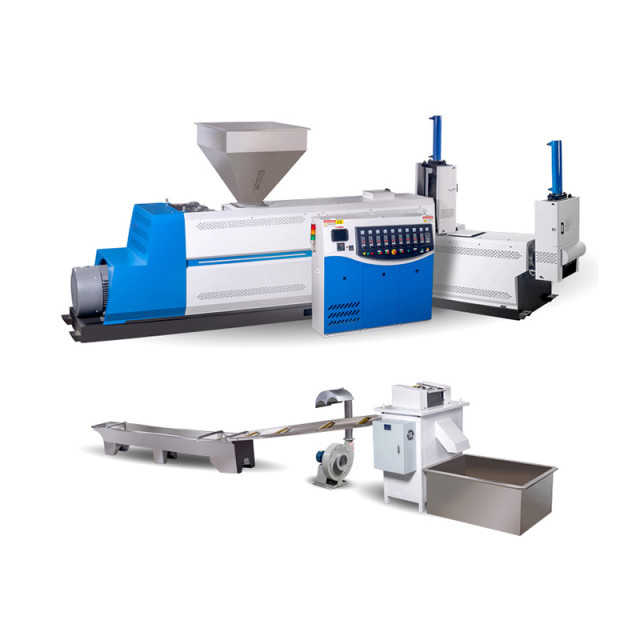

Model: SJ-100 double stage plastic recycling machine

Model: SJ-100 double stage plastic recycling machine

Model: SJ-100 double stage plastic recycling machine

PRODUCT INFORMATION

Categories: Recycling Machine

Description

Main technical parameters

产量yield

80-100kg/h (SJ-100)

适用电压

Applicable voltage

380v/50hz/3ph(可根据客户要求定制can be customized according to customer requirements)





螺杆screw

主机

First stage

直径100mm,长度2000mm,材质38CR,排气式螺杆;

Diameter:100mm, length:2000mm, material: 38CR with vent, exhaust screw;

副机

Second stage

直径100mm,长度1200mm,材质38CR,排气式螺杆;

Diameter:100mm, length:1200mm, material: 38CR with vent, exhaust screw;

齿轮箱

Gear box

采用国标ZLYJ:主机:173型;副机:173型

ZLYJ:First stage:173;;Second stage:173

电机Motor

主机First stage:22KW;;副机Second stage:15KW

变频器

Inverter

主机

First stage

采用国际知名品牌:丹佛斯·海利普22kw;

Adopt international famous brand:  HOLIP22kw;

副机

Second stage

采用国际知名品牌:丹佛斯·海利普15kw;

Adopt international famous brand:  HOLIP15kw;

模头

screen changer

主机

First stage

液压上下板尺寸:220mm*220mm;工作压力:≤35Mpa

Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa

副机

Second stage

液压上下板尺寸:220mm*220mm;工作压力:≤35Mpa

Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa

电箱

Control box

温控显示:9区;电器采用国内外知名品牌施耐德与正泰产品

Temperature control display:9 Zone; Schneider and China ZHENGTAI  products are used for electrical appliances

电热圈

Heating

材质:陶瓷;加热电压:220V/50Hz;加热功率:2kw-3kw;

Material: Ceramic;Heating voltage: 220 V / 50 Hz;Heating power: 2kw-3kw;

普通料斗Hopper

开放式平行料斗Open parallel hopper

(不包含强制料斗)

冷却水槽

Cooling system

不锈钢材质2500mm*400mm*350mm

Size:2500*400*350mm    Material:Stainless

吹风机

Fan

1.5kw中压电机;加不锈钢流水板

1.5KW medium voltage motor; stainless steel water plate

切粒机

Cutter system

采用合金14把滚刀;切粒尺寸:3-4mm;电机:2.2kw;

Using 14 alloy hobs; grain size: 3-4mm; motor: 2.2kW;

油箱oil box

电机:1.5kw,电磁阀启动;请加液压油:46号或68号;蓄油量:40L;

Motor: 1.5kw, solenoid valve starts;hydraulic oil: 46 or 68;Oil storage capacity: 40L;

随机配件

Random accessories

工具箱(按钮开关、加热棒、电热偶、剪刀、铲刀、钳子等随机配送)

Tool box (button switch, heating rod, electric couple, scissors, shovel, pliers, etc. are randomly distributed)

We are Plastic Grinding Milling Granulator (Pelletizer) suppliers/manufacturers from china factory. We also can produce the Plastic Grinding Milling Granulator (Pelletizer) according to the client’s requirement. We are always try our best to become the good Plastic Grinding Milling Granulator (Pelletizer), recycling machine, plastic pelletizer, waste film recycling machine, Granulator machine, grinding and milling granulator manufacturers/suppliers and welcome the customer from all over the world to contact with us.
