SJ-100 single stage plastic recycling machine

SJ-100 single stage plastic recycling machine

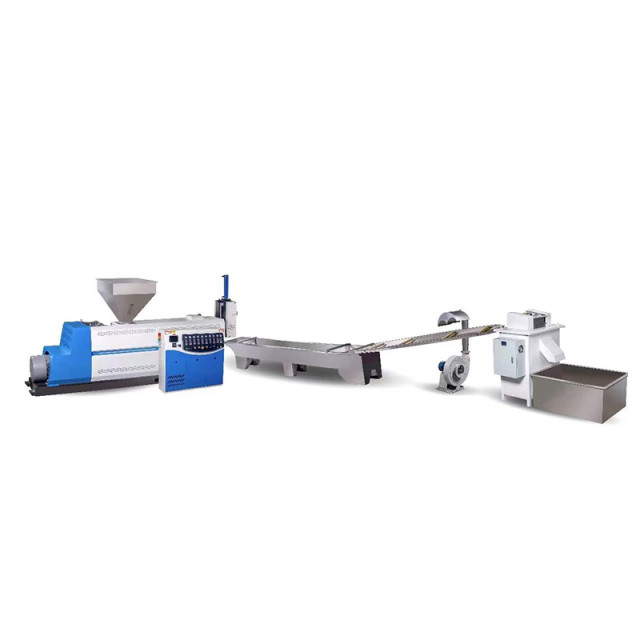

Model: SJ-100 single stage plastic recycling machine

PRODUCT INFORMATION

Description

Main technical parameters

Model: SJ-100

 PRODUCT INFORMATION

Categories:    Recycling Machine

Brand:    Zhuxin



Recycling Machine Electric Control Drywet Granulator Feature:
It is used for recovering polyethylene and polypropylene waste film and waste thread forre -granulation. The machine body is equipped with protecting cover to make operation even safer and constant temperature even more stable.

Recycling Machine Electric Control Drywet Granulator Technical data:

产量yield

80-100kg/h

适用电压

Applicable voltage

380v/50hz/3ph

(可根据客户要求定制can be customized according to customer requirements)

螺杆screw

直径100mm,长度2000mm,材质38CR,排气式螺杆;

Diameter:100mm, length:2000mm, material: 38CR with vent, exhaust screw;

齿轮箱Gear box

采用国标ZLYJ:173型;

ZLYJ:173;

电机Motor

22KW

变频器Inverter

采用国际知名品牌:丹佛斯·海利普22kw;

Adopt international famous brand:  HOLIP22kw;

模头screen changer

液压上下板尺寸:220mm*220mm;工作压力:≤35Mpa

Hydraulic upper and lower plate size:220mm * 220mm; working pressure: ≤ 35MPa

控制系统Control box

温控显示:5区;电器采用国内外知名品牌施耐德与正泰产品

Temperature control display: 5 Zone; Schneider and China ZHENGTAI  products are used for electrical appliances

加热系统Heating

材质:陶瓷;加热电压:220V/50Hz;加热功率:2kw-3kw;

Material: Ceramic;Heating voltage: 220 V / 50 Hz;Heating power: 2kw-3kw;

普通料斗Hopper

普通平行料斗或者圆形料斗Open parallel hopper   (不包含强制料斗)

冷却系统

Cooling system

不锈钢材质2500mm*400mm*350mm

Size:2500*400*350mm    Material:Stainless

粒子除水机

Fan

1.5kw中压电机;加不锈钢流水板

1.5KW medium voltage motor; stainless steel water plate

切粒系统

Cutter system

采用合金14把滚刀;切粒尺寸:3-4mm;电机:2.2kw;

Using 14 alloy hobs; grain size: 3-4mm; motor: 2.2kW;

液压换网系统oil box

电机:1.5kw,电磁阀启动;请加液压油:46号或68号;蓄油量:40L;

Motor: 1.5kw, solenoid valve starts;hydraulic oil: 46 or 68;Oil storage capacity: 40L;



We are Water Cooling Recycling Machine (Electric control) suppliers/manufacturers from china factory. We also can produce the Water Cooling Recycling Machine (Electric control) according to the client’s requirement. We are always try our best to become the good Water Cooling Recycling Machine (Electric control), recycling machine, water cooled pelletizer, plastic film recycling machine, Granulator machine manufacturers/suppliers and welcome the customer from all over the world to contact with us.
